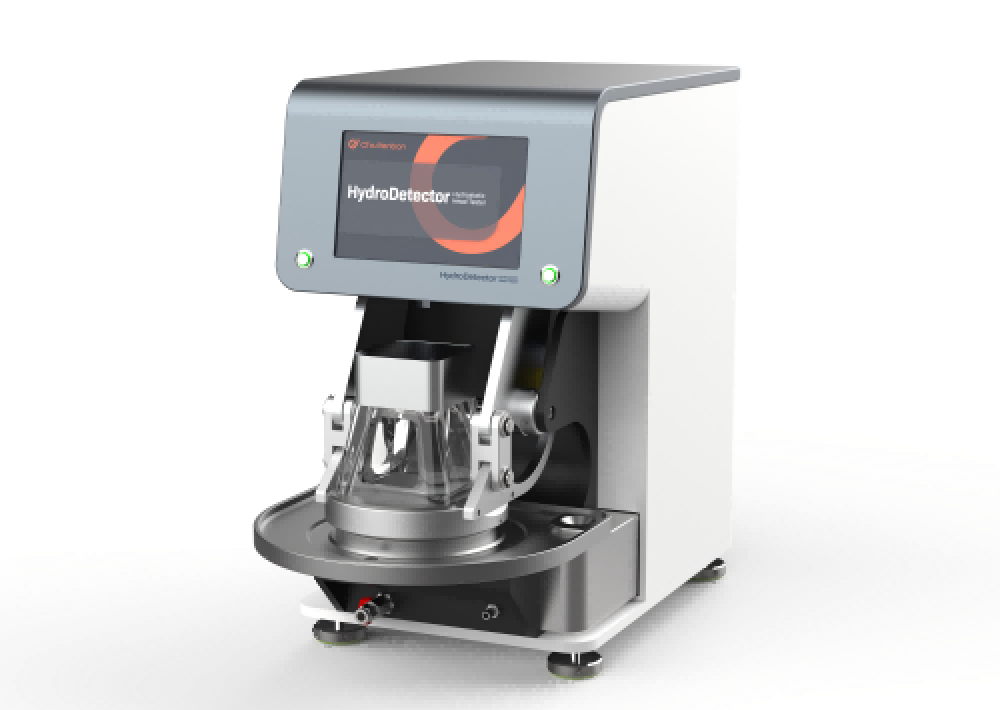

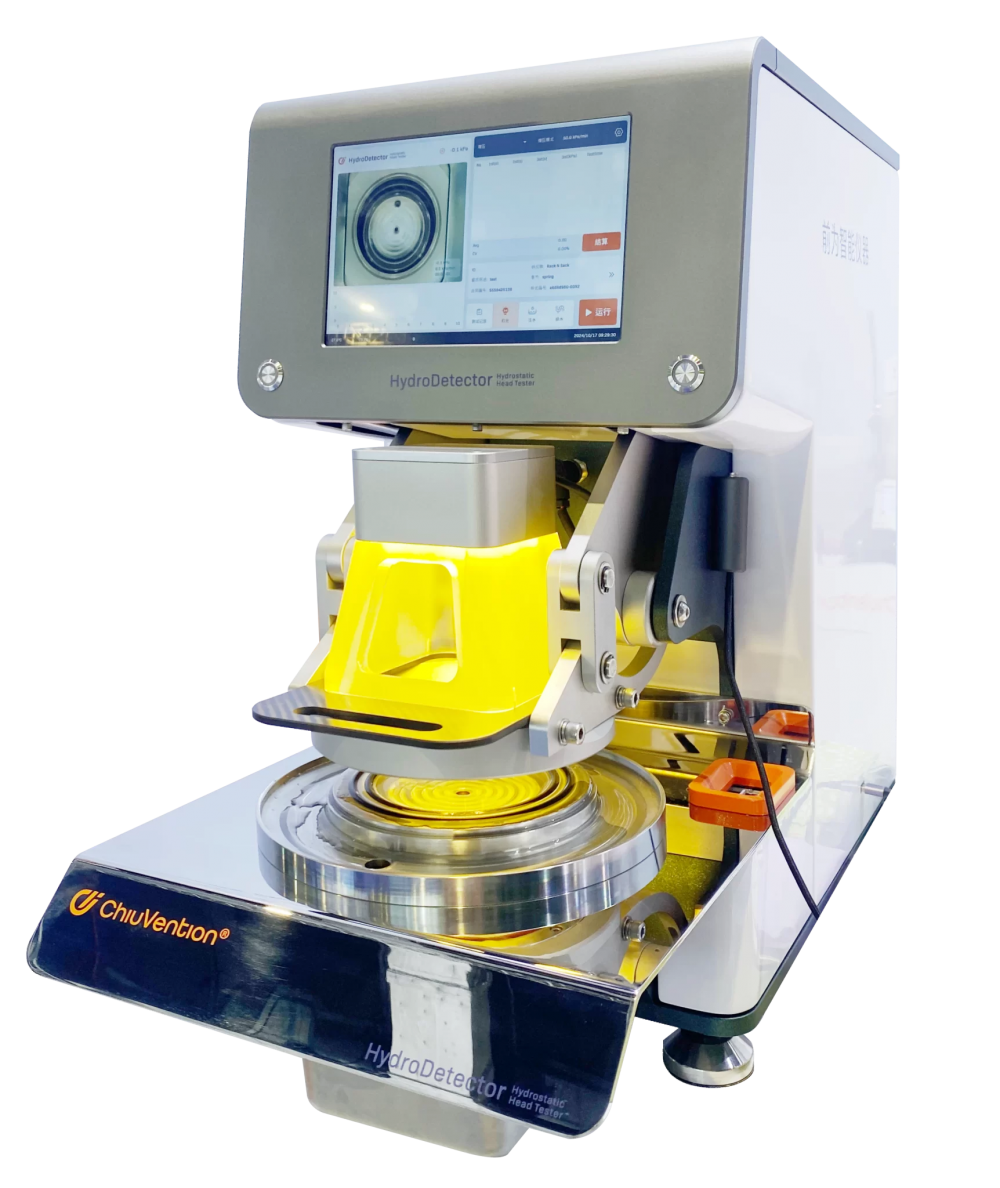

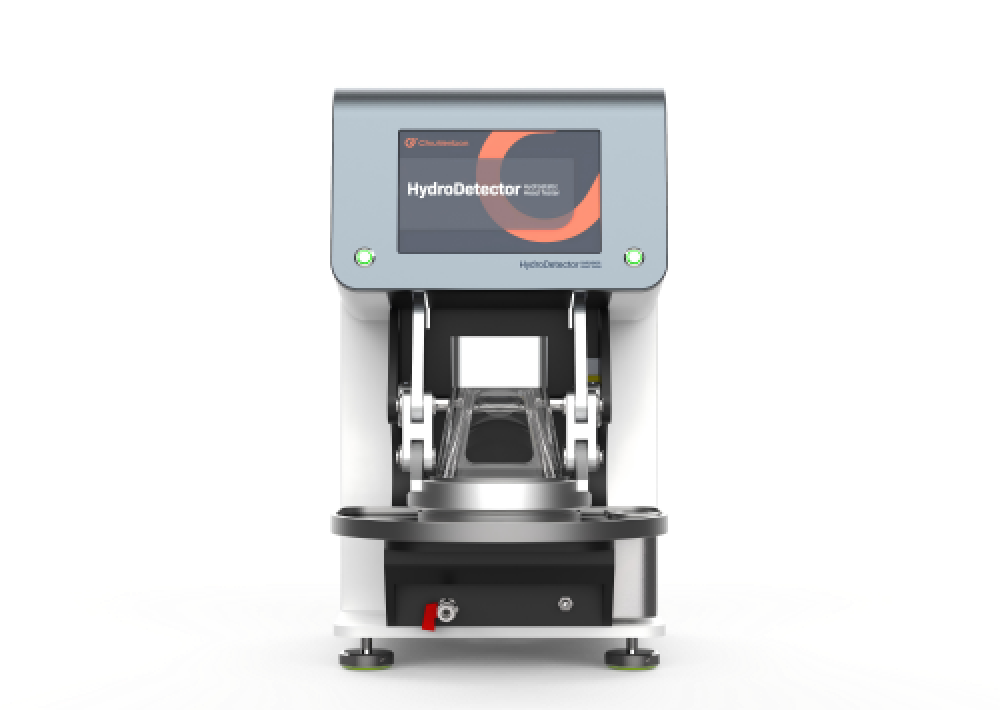

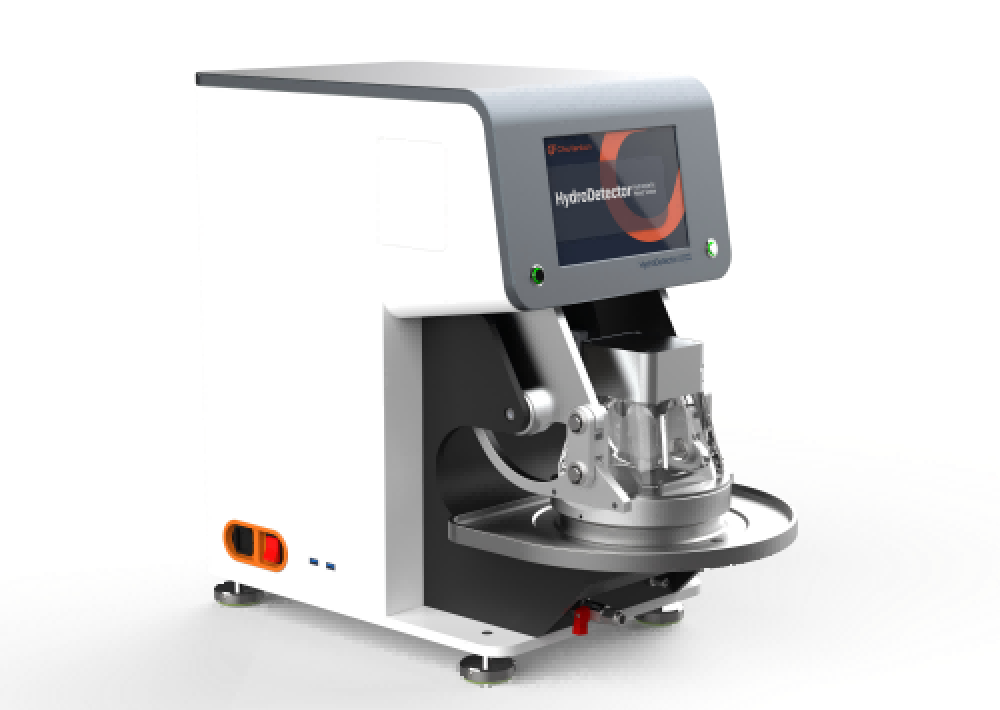

The hydrostatic head tester is used to determine the resistance to water penetration under pressure of fabrics like canvas, coated fabrics, rainproof fabrics and geotextiles.
Three test modes are available: pressure raising, constant pressure, as well as constant pressure and fixed time.
The water pressure ranges up to 1000 kPa (100 m water column) and the pressure increase rate is adjustable from 1 up to 60 kPa/min.
Waterkolom Tester
<
>
Kenmerken
- Real time test results are shown on the large touch panel, pc software available as an option
- LED lamp to observe the test process
- Protectie cover around test area
Normen
AATCC 127 • ISO 811 • ISO 1420A • ISO 9073 • ISO 16603 • EN ISO 7854 • EN 343 • EN 1734 • EN 14126 • EN 14325 • EN 20811 • BS 2823 • BS 3424 • DIN 53886 • AFNOR G07-057 • ERT 120.1 • ERT 160.0 • ASTM F903 • INDA IST 80.4
