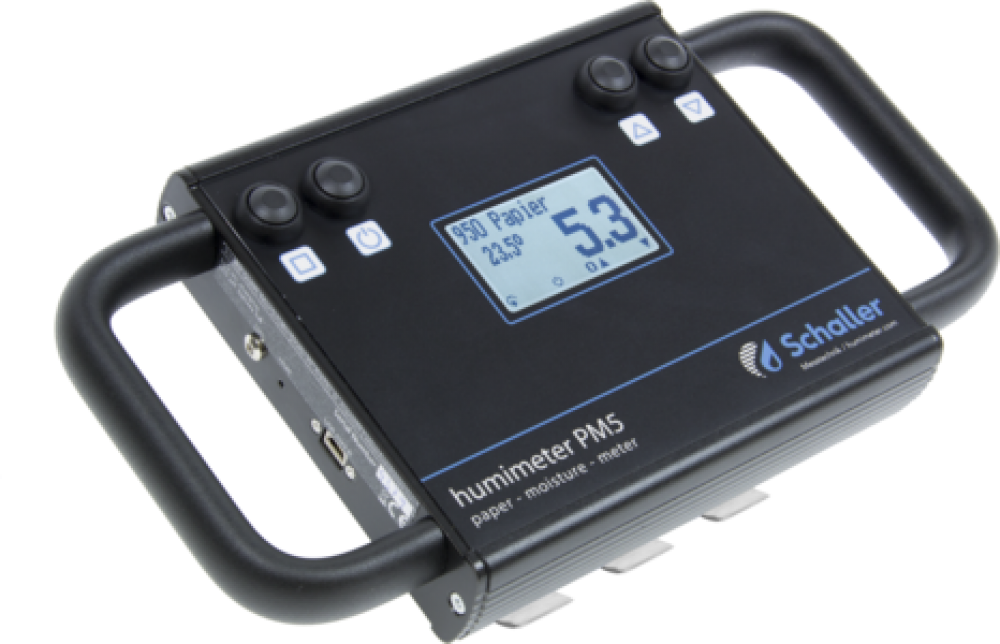

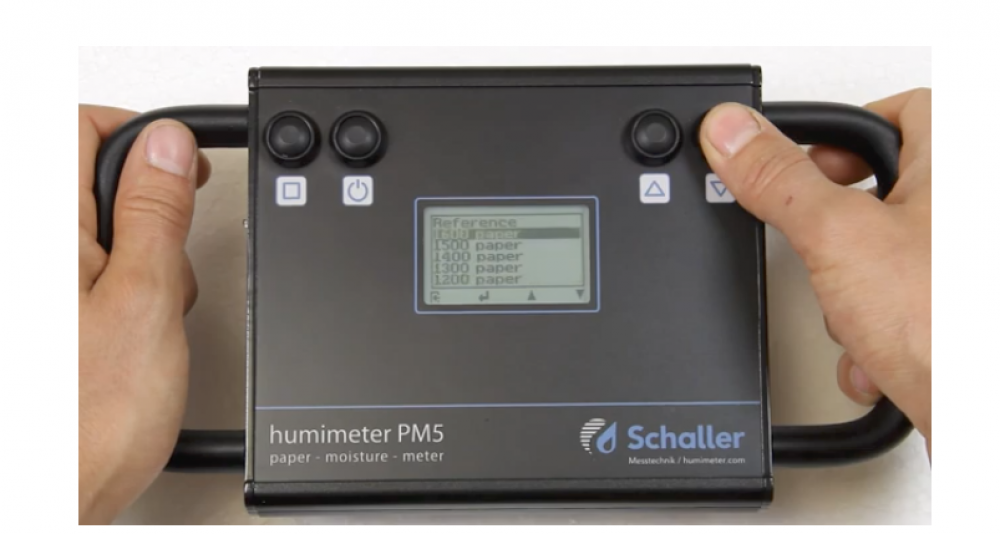

Paper Moisture Meter PM5

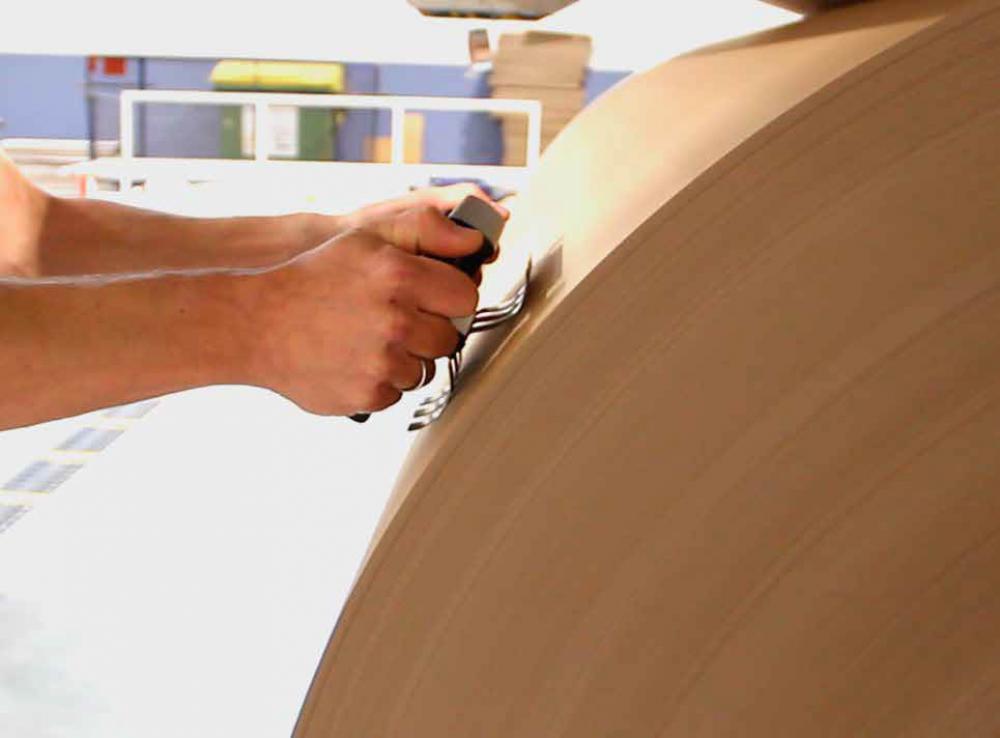

Humimeter PM5 paper moisture meter for determination of absolute water content at the paper roll with high measuring depth. For paper manufacturers, paper processors and paper retailers, for a non-destructive determination of absolute moisture of paper and cardboard at warm, running paper rolls as well as at stagnant, cool rolls. With non-contact infrared paper temperature measurement. Non-destructive measurement through the packaging!

  • Measuring range: 1% to 25% water content
  • Resolution: 0.1% water content
  • Measuring depth: 50 mm
  • Non-contact infrared temperature measurement with 90° optics
  • Paper temperature for determination of water content: 0 to +80°C / 32 to 176°F
  • Infrared temperature measurement –25 to +125°C / -13 to 257 °F
  • Automatic temperature compensation
  • Temperature can be set to °C or °F as required
  • Measurement within seconds without prior treatment of samples
  • Hold function, automatic datalog and manual saving of results for up to 10,000 measuring values with measuring point report
  • Large, well-lit LC display Dimensions 254 x 138 x 70 mm (with rubber protection, weight 850 g
  • Scope of supply: humimeter PM5, USB data interface module with LogMemorizer measuring data recording and analysing software on USB flash drive incl. USB cable for PC, rechargeable battery, plastic case with proof plate
Download brochure (722 KB)


  • Quick and highly accurate measurement using a non-destructive method
  • Simple handling, small, handy, applicable everywhere on site
  • Menu languages: English, German, Italian, French, Spanish, Russian, Portuguese, Czech and Polish
  • For measuring moisture in paper piles, see our paper moisture meter model RH5
  • For measurement of non moving rolls, check our paper moisture meter model PMP
