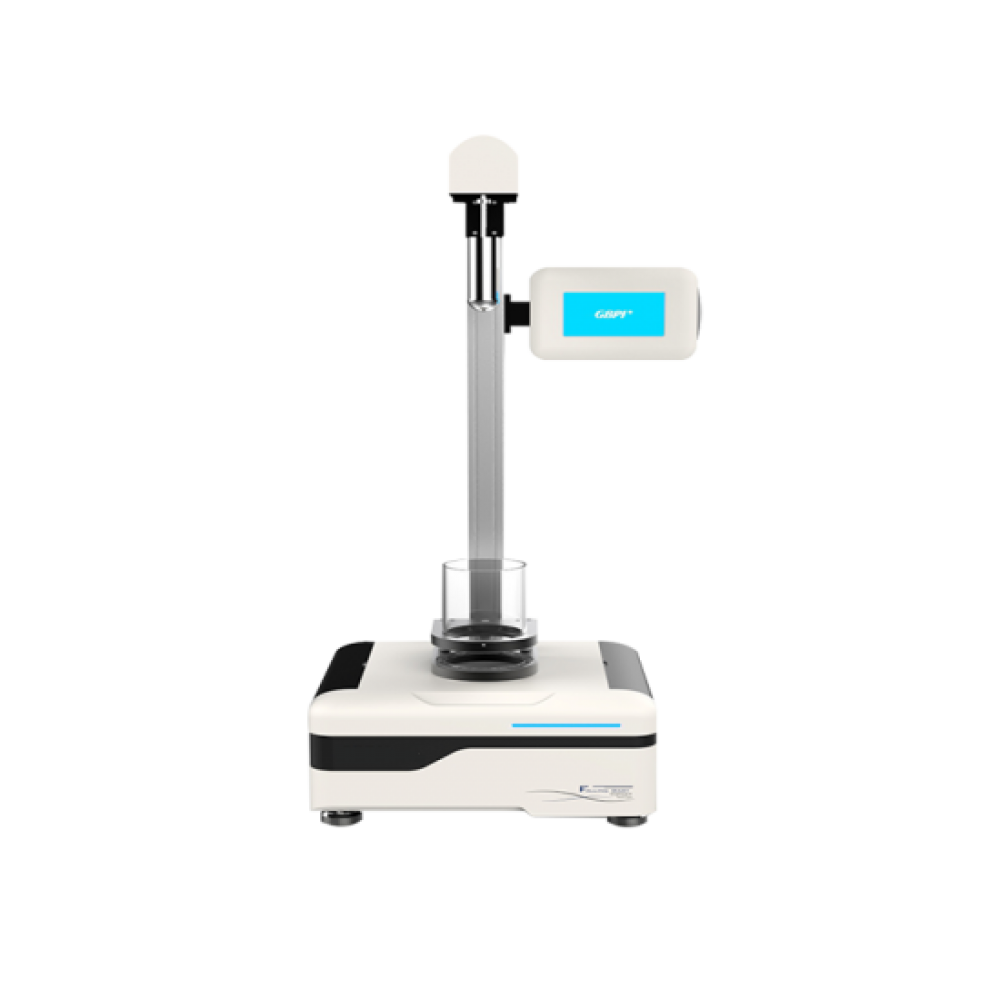

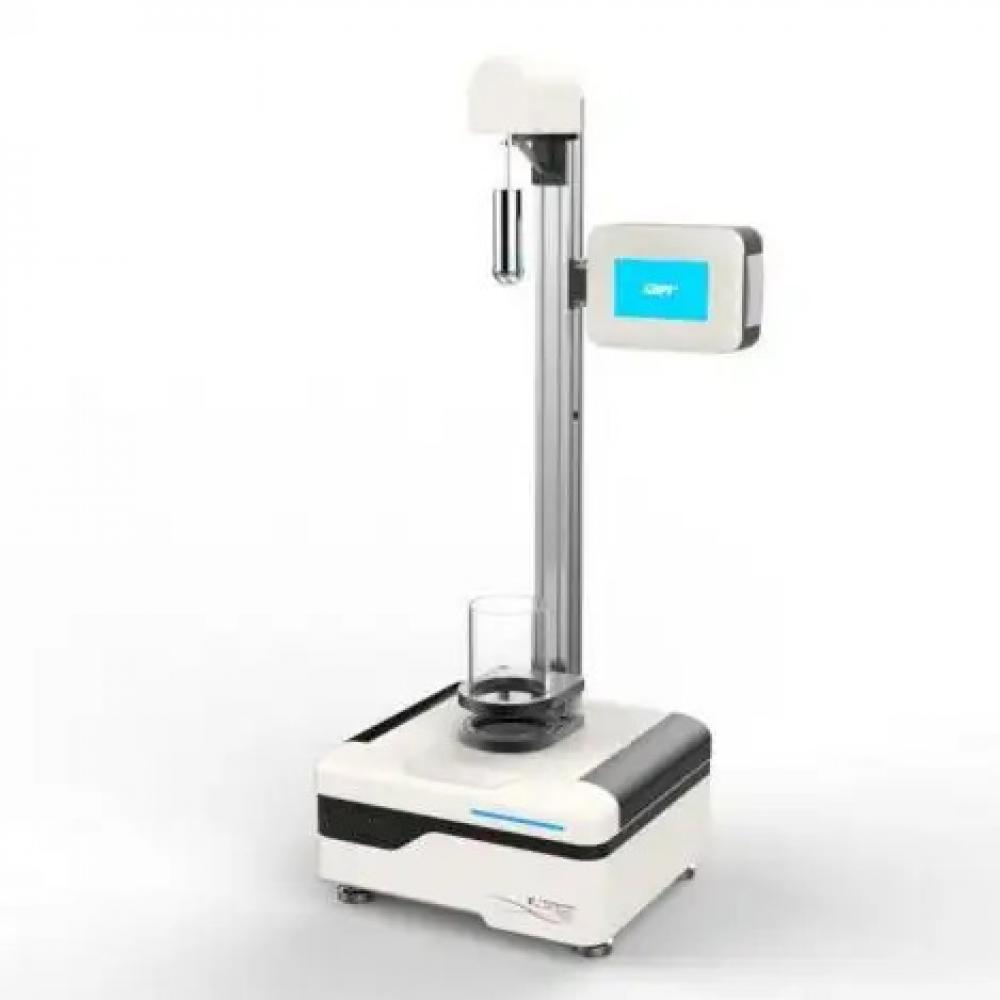

Falling Dart Impact Tester

Film

Instrument to determine the impact resistance of plastic films, sheets and composite films, wrapping films, and other foods packages and heavy packages, as well as aluminum foil and aluminum plastic composites.

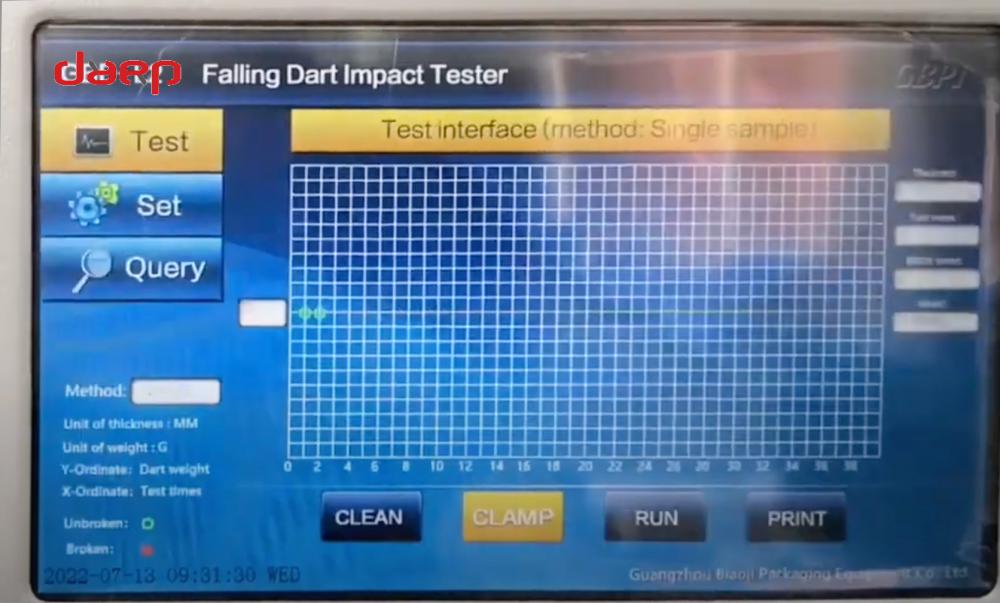

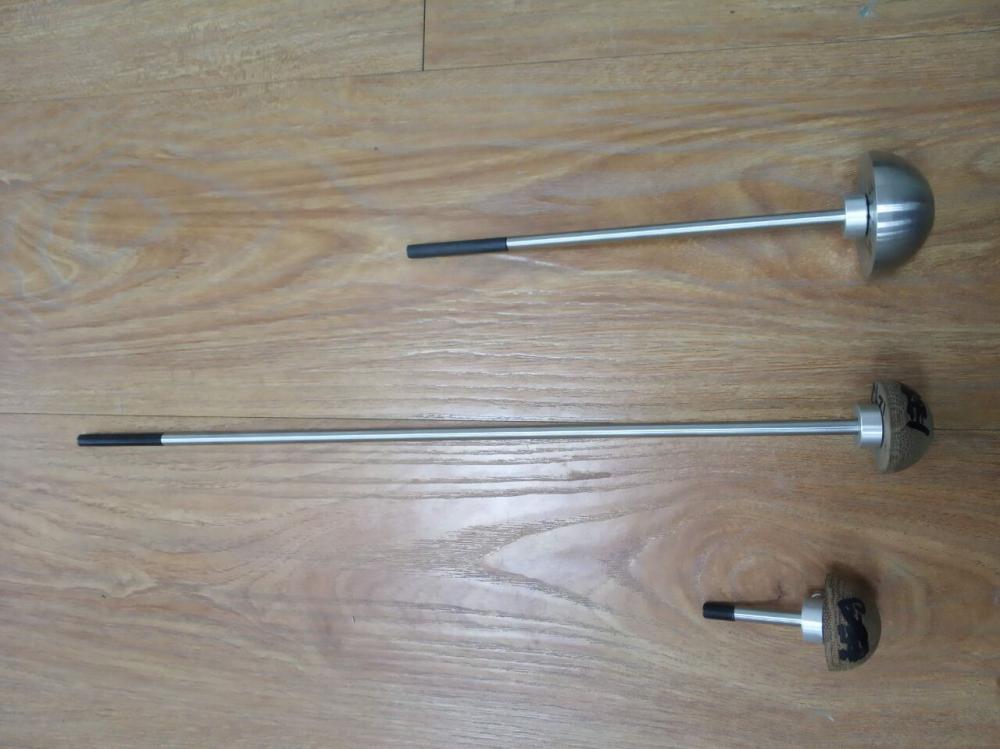

The instrument features a control panel with illuminated display and easy and efficient menu operation. The sample is fixed and released by means of a pneumatic clamp. This instrument is suitable for tests according to method A, as well as method B, and includes both darts and weight sets.

Download brochure (404 KB)

Kenmerken

  • Range 50-2000 g (method A), 300-2000 g (method B)
  • Accuracy 0.1 g
  • Sample 150 x 150 mm or larger
  • Clamp pneumatic
  • Dimensions 51 x 44 x 130 cm
  • Weight 50 kg
  • Mains 220 V ± 10%, 50 Hz

Normen

ASTM D1709 • ISO 7765-1
